Scrutinizing Famine Disaster Based On Rainfall Trend Investigation (A Case Study of Khorasan Razavi Province)

1Department of Civil Engineering, Isfahan University of Technology, Isfahan, Iran

2Department of Civil Engineering, Ferdowsi University of Mashhad, Iran

3Department of Civil Engineering, Sharif University of Technology, Tehran, Iran


Rainfall is one of the most important components of the hydrological cycle. The importance of rainfall in arid and semi-arid regions is more apparent. Due to the important role of rainfall trend assessment in the proper management of water resources, in the present study, Khorasan Razavi province, the second-most populous province of Iran located in the northeast of the country, for this purpose was studied. Currently, this region is facing water shortage problems. In this study, the non-parametric Mann-Kendall method was used to evaluate the annual rainfall trend over a thirty-year period from 1989 to 2019. On the other hand, Sen's slope estimator method was used to determine the magnitude of the rainfall trend in the studied synoptic and rain gauge stations. The results showed that the root of water shortage problems is not due to drastic changes in rainfall. Therefore, water shortage problems in Khorasan Razavi province are mainly due to a lack of proper management (i.e., mismanagement). The present study, by examining the rainfall trend using an appropriate framework, tried to take an effective step towards improving the management of water resources in the northeast of Iran.

Author Contributions
Received 02 Feb 2022; Accepted 15 Mar 2022; Published 19 May 2022;

Copyright ©  2022 Omid Zabihi, et al.

Creative Commons License     This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Competing interests

The authors have declared that no competing interests exist.


Omid Zabihi, Mohammad Gheibi, Reza Aghlmand, Amir Nejatianc (2022) Scrutinizing Famine Disaster Based On Rainfall Trend Investigation (A Case Study of Khorasan Razavi Province). Journal of Water - 1(2):17-26.

Download as RIS, BibTeX, Text (Include abstract )

DOI 10.14302/issn.2769-2264.jw-22-4086


Climate change has a direct impact on water resources and consequently on society and the economy 1, 2. It has a diverse effect on the environment and may impact temperature, rainfall, and ecosystem functions 3, 4, 5. Rainfall is the main climate factor that rules the hydrologic cycles and determining its change is essential in water resources management 2, 6, 7. It becomes more important in arid and semi-arid regions where water scarcity is a common issue and regional agriculture is being affected by long-term precipitation changes 8, 9. Therefore, analyzing rainfall trends become important in such regions to better manage water scarcity or reservoir overflow and their derivative problems 10.

It’s crucial to determine precipitation trend change in each region to develop and improve regional strategies for water resources management 6, 11. Rainfall trend analysis has received much attention and has been investigated by many researchers all over the world in the past century 12. Its trend has been investigated in global 13, 14, 15, 16 and regional scales 17, 18, 9, 19 by parametric 20, 21, 22 and non-parametric tests 23, 24, 25, 26, 27. Non-parametric tests have been used more frequently than parametric tests since they are distribution-free 28, therefore in this study the non-parametric Mann-Kendall test, which is the most frequently used non-parametric test in this regard 29, has been used to determine annual rainfall trend in Khorasan Razavi province of Iran.

Several studies have been investigated or mentioned the climate change impacts on Khorasan Razavi province since it is the second populated province in Iran. The climate change effect on crops yield 30, maize production and growth stages 31, 32, 33, assessment and adaption strategies for wheat and saffron yield 31, 34, 35, buildings energy demand 36, temperature trend 37 and vegetation cover trend 38 has been investigated. Recently, this province has encountered water shortage problems and most cities have encountered water supply problems that may be due to climate change effect and miss management. So, climate change effect on the province precipitation can be assumed as a research gap that will be investigated and analyzed in this study. The present study aims to (i) Analyze the long-term rainfall data; (ii) Determine the rainfall trend; and, (iii) Determine the median rate of change in rainfall trend in Khorasan Razavi province.

Materials and Methods

Case Study

Khorasan Razavi province with about six million populations is the second populated province in Iran which 75% of its area is arid and the rest is semi-arid 39, 40. It is also the 5th largest province and has common boundaries with Turkmenistan and Afghanistan which is shown in Figure 1 with studied synoptic and rain gauge stations. The province has lots of historical monuments like the 8th imam of Shias shrine located in the province center i.e. Mashhad city which is being visited by about 20 million people each year equal to 25% of the country’s population 41. The province has the most declination of groundwater sources among the countries provinces which is 1028 million cubic meters (MCM) and by 184 MCM during 2019 40 that shows the province is in a critical situation about water resources management.

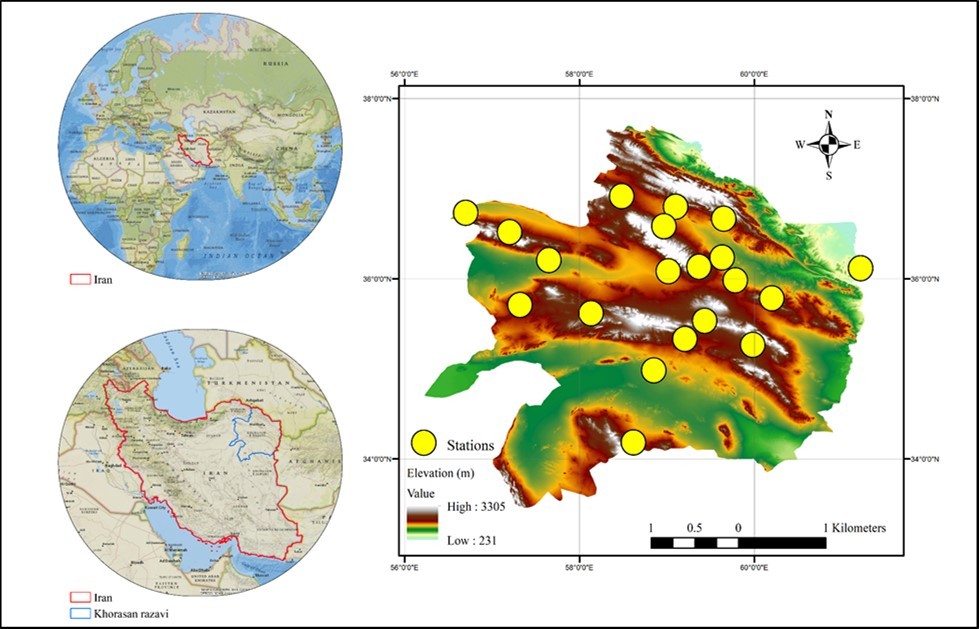

Figure 1.The location of Khorasan Razavi province and related stations of the study area.
 The location of Khorasan Razavi province and related stations of the study area.

The Research Road Map

For analyzing the rainfall trend in Khorasan Razavi province, the rainfall data were gathered from the Iran meteorological organization for 30 years from 1989 to 2019 for 20 synoptic and rain gauge stations. The homogeneity of the annual data time series has been investigated and the non-parametric Mann-Kendall 42, 43 test was used to determine the annual trend in time series, after that the Sen’s slope estimator 44 was used to detect the median change in stations trend. The research steps are reported in Figure 2.

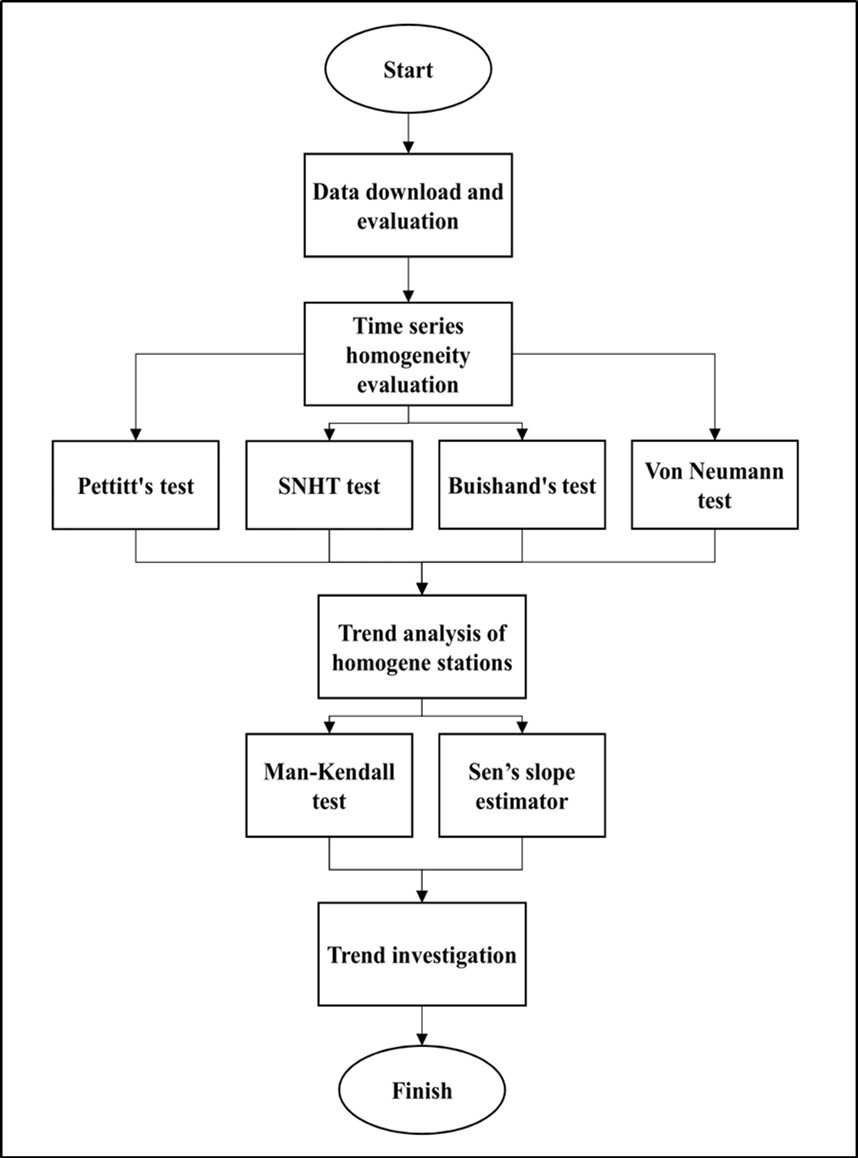

Figure 2.Research road map or frame work.
 Research road map or frame work.

Homogeneity and Trend Analyses

The homogeneity of data time series has been investigated by using Pettitt's test 45, SNHT test 46, Buishand's test 47, and von Neumann test 48 in excel using XLSTAT 2019. The homogeneity has been studied at a 95% confidence interval on the p-value. The stations were determined homogeneous if they were considered homogenous at 0.05 significance level by at least two tests. The trend of datasets has been studied using non-parametric Mann-Kendall test 42, 43 at 0.05 significance level, that is calculated as follows,


where n is the number of data points, xiand xj are the data values in the time series i and j (j > i), respectively, and sgn (xj - xi) is the sign function that is defined by,


As well as, the median change of trends has been determined using Sen’s slope estimator 44, as follows,


where xj and xk are the data values at times j and k (j > k), respectively, and n is the number of time periods.

Results and Discussion

The homogeneity tests revealed that four stations were considered non-homogeneous by only one test and three stations were considered non-homogeneous by two tests. Therefore, all stations were considered homogeneous by at least two tests and so determined homogeneous; Thus, all 20 stations are involved in the trend study to detect the rainfall trend of each station. The total stations that are considered homogeneous by each homogeneity test are reported in Table 1.

Table 1. The total homogeneous stations are considered by each test.
  Pettitt's test SNHT test Buishand's test Von Neumann test
Homogeneous stations 19 16 17 18

The long-term average rainfall of Khorasan Razavi province for the thirty-year period is 242 mm and each year rainfall to the long-term average depicted in Figure 3. It indicates the annual precipitation for 16 years was more than the long-term average which shows that by true management, the excess water in rainy years can be saved to use in drought times. Moreover, it shows that the water shortage problems are due to mismanagement since the long-term average doesn’t show a significant trend. It should be noted that the problem of mismanagement is not limited to Khorasan Razavi province and in most parts of the country, we see this problem in the field of water. Another reason for the water shortage problem that has led to the water crisis in the study region is the excessive and uncontrolled withdrawal of groundwater resources. Rainfall penetrates the aquifers of the study area and recharges the groundwater resources, but over-exploitation from this source, usually with unauthorized/unlicensed wells, causes a decrease in the aquifer levels. Rapid population growth in the study area and migration from small towns to Khorasan Razavi province, which is the second-most populous province in Iran, are other causes of water shortage in the study region. Therefore, it is observed that the survey of rainfall trends can clarify many probable issues/problems in the field of water resources management.

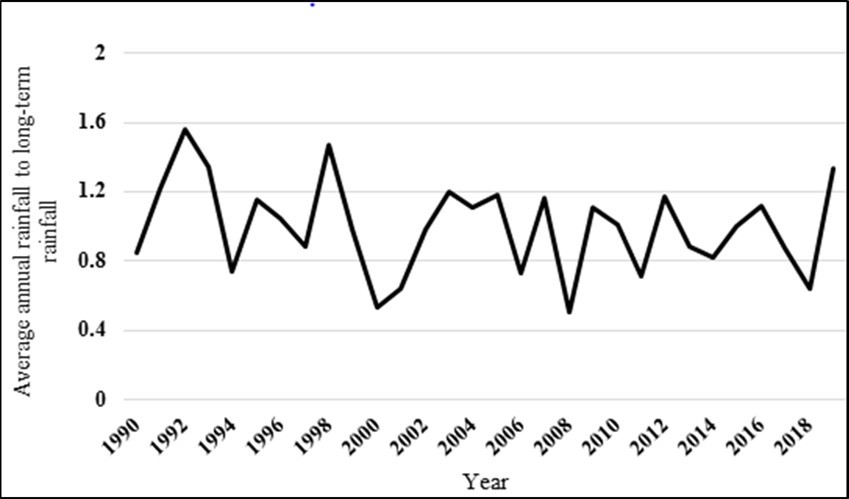

Figure 3.The total average annual rainfall to total long-term rainfall in the study area.
 The total average annual rainfall to total long-term rainfall in the study area.

The maximum and minimum rainfall in the stations are reported in Table 2 within the mean and standard deviations. The analysis revealed that the maximum and minimum annual rainfall belongs to Moghan station in 1992 by 646 mm and Azadvar station in 1990 by 28 mm. The rainiest station is Moghan in the center of the province by the annual long-term average of 398 mm, and the Mahane station has the least long-term annual average precipitation of 158 mm in the south of the study province.

The station's data time series trend has been found out by using the nonparametric Mann-Kendall test. Only two stations had a significant trend at 95% confidence which is shown in Figure 4. The Sen’s slope estimator was used to determine the median change of trend at these stations and was -2.86 for Mahane and -3.18 for Torbat-e heydariyeh station

Table 2. The station's elevation from the sea surface (m), as well as minimum, maximum, mean, and standard deviation of long-term annual rainfall.
Station Station elevation (m) Minimum (mm) Maximum (mm) Mean (mm) Standard deviation
Radekan 1180 101.900 309.166 217.318 58.500
Azadvar 984 28.000 314.382 170.913 71.910
Kardeh 990 148.806 440.579 258.438 71.450
Akhlemade olia 1350 110.240 450.300 243.772 90.917
Moghan (gharemoghan) 1900 217.600 646.800 398.600 113.735
Khayyam 1230 119.210 470.100 287.910 95.765
Sangbast 1500 106.040 431.310 220.305 81.019
Shahane-garmab 1500 118.300 454.400 251.926 82.705
Mahaneh 950 56.500 297.800 158.507 58.675
Shahine-olya 1620 108.877 479.100 246.909 93.450
Shirtappeh 275 80.300 361.000 224.046 66.730
Homayi 1337 88.071 308.400 191.868 63.991
Kakhk 1545 71.500 335.500 197.482 81.126
Barsalan 1660 153.655 633.900 375.770 117.026
Nasarrokh 2130 95.600 563.300 287.892 115.573
Zarghan 1370 127.500 532.500 268.666 93.420
Kharsaf 1565 81.177 432.747 184.529 69.825
Sabzevar 962 84.890 297.323 179.984 60.470
Mashhad 999 106.040 422.320 238.339 79.393
Torbat-e heydariyeh 1451 99.230 455.190 245.591 87.844
Total average in Khorasan Razavi 1324.9 123.833 378.023 242.438 64.278

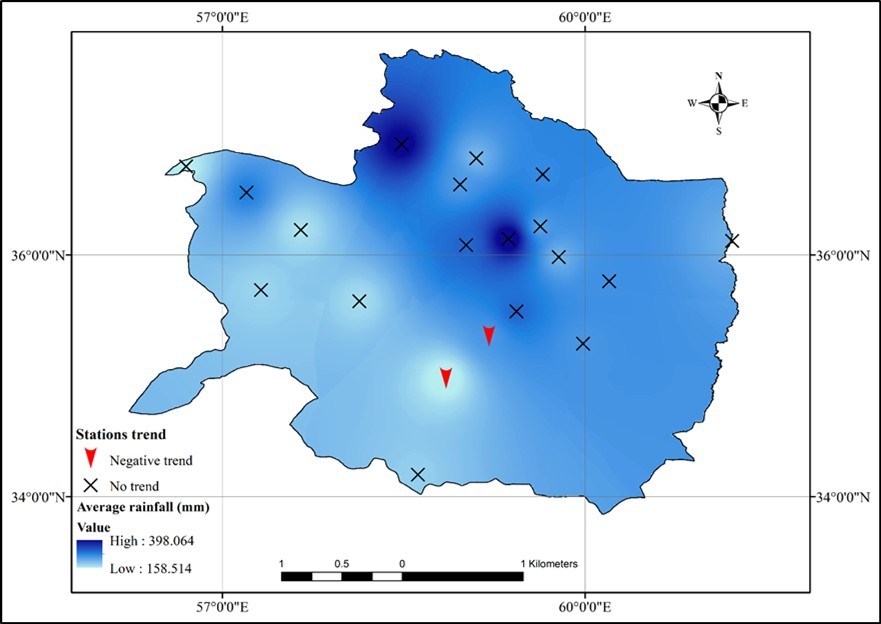

Figure 4.The average annual rainfall (mm) and the rainfall trend in the study area.
 The average annual rainfall (mm) and the rainfall trend in the study area.


Rainfall is a key component in the hydrological process, especially in arid/semi-arid regions such as Iran. Given that the study of rainfall is of particular importance in the management of water resources, such a study seemed necessary in Khorasan Razavi province, the second-most populous region in Iran located in the northeast of the country. Investigating the trend of average rainfall over a period of thirty years (1989-2019), it was observed that the trend of average rainfall has not changed much. However, in this region, we are witnessing many problems, including water shortages, one of the main reasons for which is the lack of proper management (i.e., mismanagement) of water resources. Also, a more detailed study of the synoptic and rain gauge stations in the study area from the perspective of rainfall trend showed that except for two stations that had a decreasing rainfall trend, no special trend was observed in other stations. As a result, the general framework used in the present study, including evaluating the homogeneity of time series data and then using the Mann-Kendall and Sen's slope estimator methods together, is a good option for the purposes of evaluating rainfall trends.
